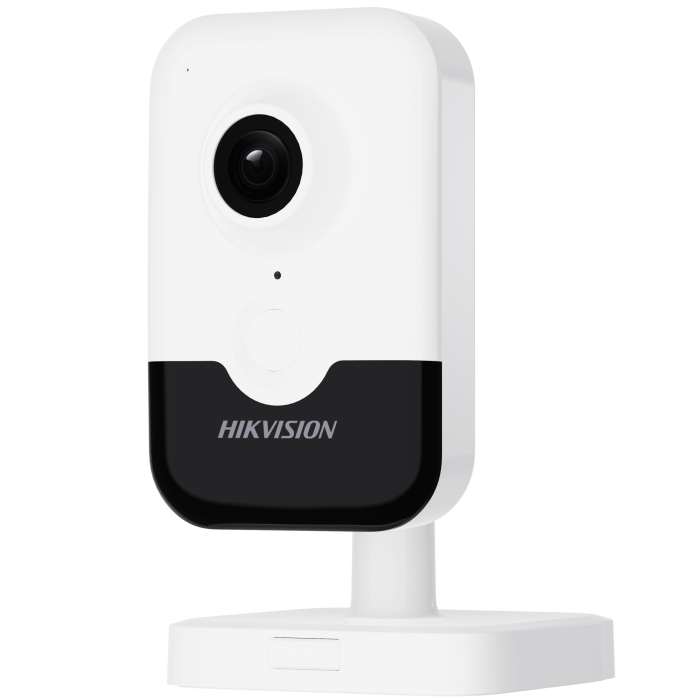

IP camera DS-2CD2423G2-IW(2.8mm) cube white

SKU: 311326962

IP camera Hikvision DS-2CD2423G2-IW F2.8mm 2MP Indoor Audio Human Body Detection Cube White

Retail price:

€ 176.15

€ 145.58 + VAT

In stock

Rīga: 10+ psc.

Daugavpils: Sold Out

Estonia: Sold Out

High quality imaging with 2 MP resolution
Clear imaging against strong backlight due to Digital WDR technology
Focus on human classification based on deep learning
Provide real-time security via built-in two-way audio

Base Attributes

Brand	Hikvision
Net Weight	0.388
Gross Weight	0.388

Key Parameter

Case type	Cube
Resolution	2 MP
Lens Type	Fixed Lens
Low-Light Imaging	Normal
Illumination Distance	0-20m
Wireless Network	Wi-Fi
Storage Type	SD Card
AI	Yes
Local Output	N/A
Supplemental Light	IR Light

Camera

Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Camera Module

WDR	DWDR

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110° 4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 10 m
Smart Supplement Light	Yes

Video

Video Bit Rate	Up to 1 M bps
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Bit Rate Control	CBR/VBR

Network

Simultaneous Live View	Up to 4 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
User/Host	Administrator
Client	iVMS-4200, Hik-Connect, Hik-Partner-Pro
Security	Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface

Wi-Fi

Frequency Range	2.412 GHz to 2.472 GHz
Modulation	802.11b: CCK, QPSK, BPSK 802.11g: OFDM 802.11n: OFDM
Wireless Range	Up to 50 m (The performance varies based on actual environment)


Day/Night Switch	Day, Night, Auto, Schedule

Interface

On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	Yes, 1 built-in microphone
Built-in Speaker	Yes, 1 built-in speaker

Event

Basic Event	Motion detection (support alarm triggering by specified target types (human)), exception

General

General Function	Heartbeat, Mirror
Storage Conditions	-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Power Supply	PoE, 12 VDC
Startup and Operating Conditions	-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Dimension	102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Approval

Safety	CE-LVD (EN 62368-1:2014/A11:2017)
