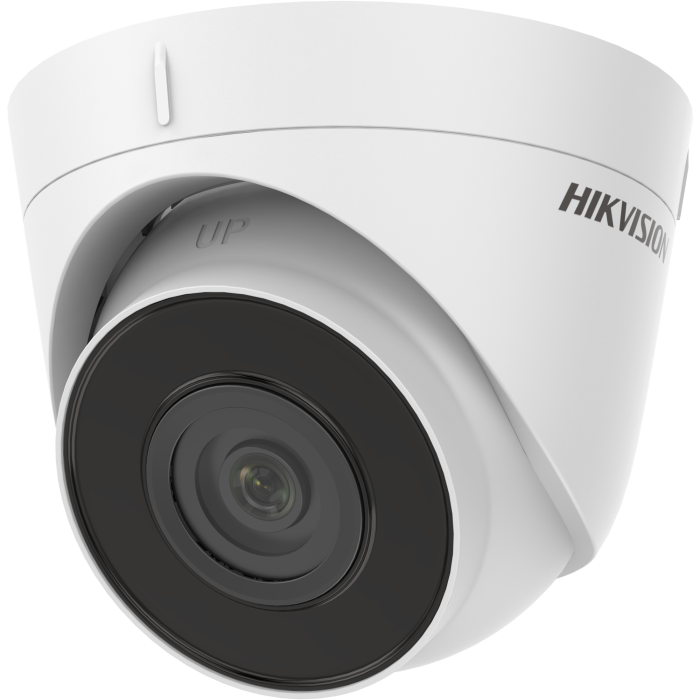

IP camera DS-2CD1321-I(2.8mm) turret white

SKU: 311316018

24--

IP camera Hikvision DS-2CD1321-I F2.8mm 2MP Turret White

Retail price:

€ 103.98

€ 85.93 + VAT

In stock

Rīga: 3 psc.

Daugavpils: 10+ psc.

Estonia: Sold Out

High quality imaging with 2 MP resolution
Efficient H.264 compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range

Base Attributes

Brand	Hikvision
Net Weight	0.42
Gross Weight	0.596

Key Parameter

Case type	Turret
Resolution	2 MP
Lens Type	Fixed Lens
Low-Light Imaging	Normal
Illumination Distance	21-50m
Wireless Network	N/A
Storage Type	N/A
AI	N/A

Camera

Image Sensor	1/2.7" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Camera Module

WDR	DWDR

Lens

Focal Length & FOV	2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°
Iris Type	Fixed

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video Bit Rate	32 Kbps to 8 Mbps
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Network

Simultaneous Live View	Up to 6 channels
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
User/Host	Up to 32 users. 3 levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect


Day/Night Switch	Day, Night, Auto, Schedule
SNR	≥ 52 dB

Event

Basic Event	Motion detection, video tampering alarm, exception

General

General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Power Supply	24 VAC
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Dimension	Ø110 mm × 85.3 mm (Ø4.3" × 3.4")

Approval

Protection	IP67 (IEC 60529-2013)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
